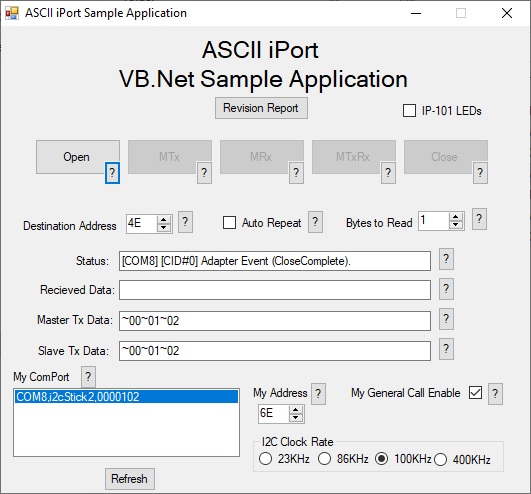

ASCII iPort .NET Class Library Windows Desktop Project MS Visual Studio VB.NET Sample Application

The ASCIIiPortLib class library provides methods, properties, events, and enumerations that support the development of Microsoft Visual Studio .NET or National Instruments LabVIEW V7+ applications for I2C Bus communications. This library support page provides a downloadable Visual Studio Windows Desktop Project created by the MCC Technical Support team. The information and project files are owned solely by MCC, are made available on a non-exclusive, royalty-free basis for use with MCC I2C Bus host adapters, and are covered by MCC's End User License Agreement.

Supported MCC I²C Bus Adapters:

• iPort/AFM 2 (#MIIC-213)
• iPort/AI 2 (#MIIC-212)
• iPort/LAN 2 (#MIIC-210)
• i2cStick 2 (#MIIC-209)
• iPort/USB 2 (#MIIC-208)
• i2cStick (#MIIC-207)
• iPort/LAN (#MIIC-205)
• iPort/USB (#MIIC-204)
• iPort/AFM (#MIIC-203)
• iPort/AI (#MIIC-202)

• Visual Basic.NET

• Visual Studio 2005+ Express Edition
• Visual Studio 2005+ Standard Exition
• Visual Studio 2005+ Professional Edition

• MS Windows 7+.
• MS .NET version 2 or greater (included with Visual Studio 2005+) installed on PC.
• This project created using Visual Studio 2017.
• A supported MCC ASCII-interface I²C Bus adapter (See Above)
• Virtual ComPort driver iPort/USB 2, iPort/USB, iPort/LAN, iPort/LAN 2, i2cStick, or i2cStick 2.
• Refer to the ASCII iPort .NET Class Library Reference

• Project Solution File: iPortSampleApplication.sln

• Library Version: 2.6
• Library Namespace: MCC.iPort.ASCII
• Library Assembly File: ASCIIiPortLib.DLL
• Library IntelliSense File: ASCIIiPortLib.XLM

1. Review and accept the MCC's End User License Agreement.
2. Download the project file (see below):
3. Extract Compressed Project Folders and Files with MS Edge, Windows Explorer, PKunZip, or other extraction software.
4. Run Microsoft Visual Studio 2005+ and select File|Open|Project/Solution...
5. Browes to the extracted folder ASCII_iPort_Windows_Desktop_VB_App/iPortSampleApplication3.
6. Select and Open the solution file:  iPortSampleApplication.sln.

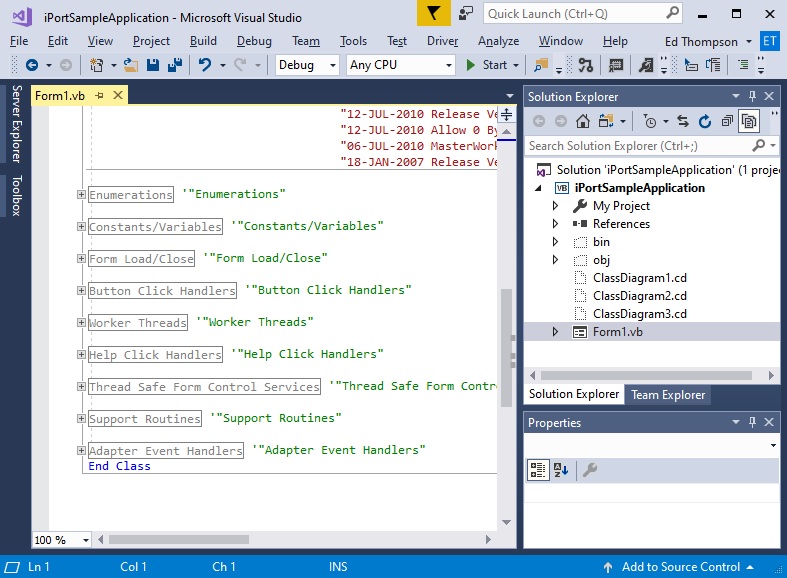

7. Build, Start, Modify, and Save project source files as required.
