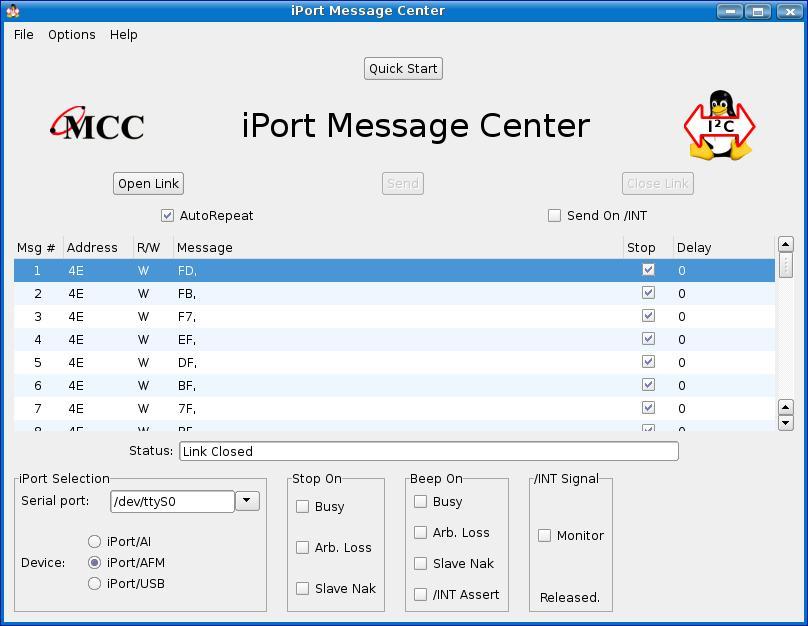

I2C Message Center for Linux (V1.0.0)
Click for larger image
Click for Larger View
I2C Bus Software for Master Write and Read Operations

Need to communicate with an I2C Bus slave device? iPort Message Center for Linux, our free I2C Bus Master messaging software, makes communicating with a slave device quick and easy.

Use Message Center to send up to 50 messages to I2C Bus slave devices. Enter, edit, save, load and auto-repeat message lists. Create messages with a click of your mouse.

  • Supports Master Write, Master Read, and Master Write/Read operations.
  • Edit Slave Address, Write or Read, Message Data, Bytes to Read, with Repeated-Start, and Time-Delay options.
  • Compatible with all 7-bit addressable I2C slave devices.
  • Supports Multiple Masters, Bus Arbitration, and Interrupt Signal detection.
  • Create/Save/Load up to 50 messages.
  • Configurable Serial Port and I2C Bus Clock Rates.
  • Auto-Repeat option.
  • Stop or Beep on selected bus events.
  • Supports all MCC ASCII interface I2C Bus host adapters (i2cStick, iPort/USB, iPort/AFM, and iPort/AI).
  • Using the Linux v2.6 in-kernel driver.
Here are some corrections and features we have added to this product:

Update V1.0.0 Corrections:

  • None.
Update V1.0.0 New Features Include:
  • Initial release.
Update Distribution/Licensing:
    This copyrighted product update is offered free of charge to users of MCC ASCII interface I2C Bus host adapters. Its use is covered by the MCC End User License Agreement (MCC EULA).
Update Download and Installation Instructions:
  1. Click below to download and save the ZIP or TAR file into a new installation folder on your Linux based PC.
  2. See the iPort Message Center for Linux User's Guide for installation and operation instructions on using this utility program.
Click to View
Click to download iMsgCtr4Linux100.zip or iMsgCtr4Linux100.tar.gz Now!
