I2C Bus and SMBus  Voltage Level Translator

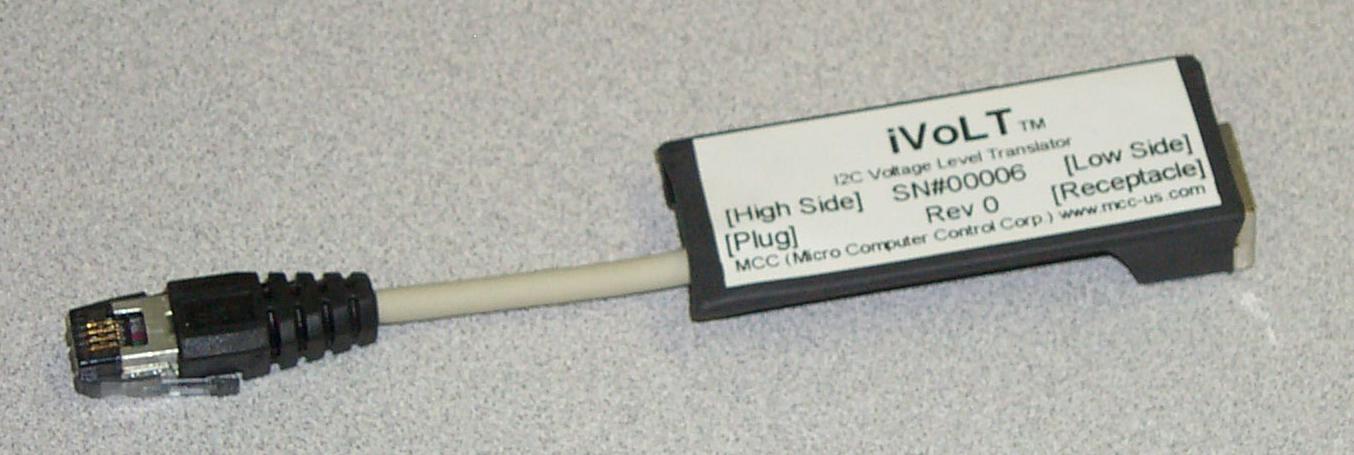

iVoLTTM (pronounced “i-volt”), is an I2C Voltage Level Translator module that gives system developers and test engineers a bridge to low voltage I2C and SMBus devices operating down to 1.5 volts. NOTE: If you are working with low-voltage I2C Bus, you may be interested in our iPort/USB 2 I2C Bus host adapter with Circuit Sense.

As portable device developers strive to reduce power budgets, they must deal with devices and interconnect buses operating at low voltages. Since I²C plays a big part in multi-media consumer products, it is only natural that low voltage devices are using I²C for its cost, space, and power saving features.

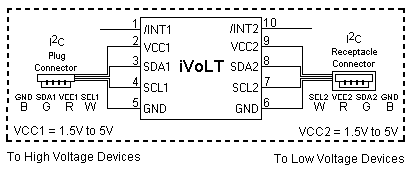

The iVoLT is an I²C Bus voltage translator module, designed to interface standard I²C and SMBus devices operating at different voltage levels. Based on Gunning Transceiver Logic-Transceiver voltage clamps, the iVoLT translates I²C Bus high voltage (3.3 V to 5 V) Clock, Data, and /INT signals to I²C Bus low voltage (at least 1 Volt below high side) signals. Supporting bi-directional I²C Bus voltage level translation, the iVoLT provides voltage translation between buses operating at up to 400 kHz.


PRODUCT HIGHLIGHTS Bi-directional I2C Bus voltage translator. Inserts In-Line between I2C devices. Supports SCL, SDA, and Interrupt signals. 5 Volt maximum high-side voltage. 1 Volt minimum differential voltage requirement. Compatible with bus speeds up to 400 kHz. Plug -Compatible with MCC I2C Bus CAB Connector Products.

Download PDF (385KB)

• Product Development: Software/Hardware Testing, Design Verification and Troubleshooting.
• Manufacturing: Testing and Debugging.
• Field Service: Field diagnosis, Repair service and Verification.
