IP-201 I²C Bus Multiplexer Board

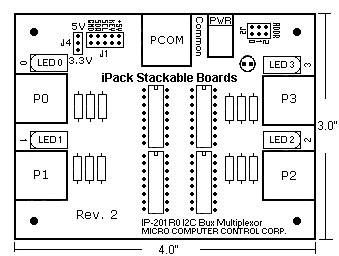

IP-201

The IP-201 is a 4 channel I²C Bus Multiplexer Board that provides an easy way to connect multiple I²C Buses to a common I²C Bus master. The IP-201 lets you communicate with multiple I²C based devices from a common I²C Bus master port while avoiding Slave Address conflicts.

Key Features

Connect a Common I²C Port to one of four (4) separate I²C Buses.
Able to Disconnect from ALL attached Buses.
LED indicators show selected Bus.
Bus selection controlled directly over the I²C Bus. No extra Hardware required.
Jumper selectable Pull-up Voltage (3.3V or 5V) (New for Rev. 2).
Jumper selectable I²C Slave Address (40...4E).
Stack multiple (1...8) IP-201 Multiplexers for up to I²C 32 Buses.
Based on MCC's iPack Stackable Board Format.
Supports Stacked or Remote board configurations.

TYPICAL APPLICATIONS

Product Development: Software/Hardware Testing and Troubleshooting.

Manufacturing: Multi-Product Burn-in, Testing and Debugging.

Parts List

IP-201 I²C Bus Multiplexer Board.
I²C Interface Cables 4 Ft.(#CAB4)
User's Guide.

Optional Add-On Parts

Power Supply (#MWT-5VAG).
I²C Interface Cables 4 Ft.(#CAB4).
iPort I²C Host Adapter.

Product Environmental Specifications: See Environmental Specifications FAQ

See our Online Catalog for ordering information.
