iBurner I2C Bus EEPROM Programmer Software (V3.0)
Introducing iBurner™ V3.0, our free I2C EEPROM programming software package. Click to Download
Click for a larger image.

Click for a larger image.

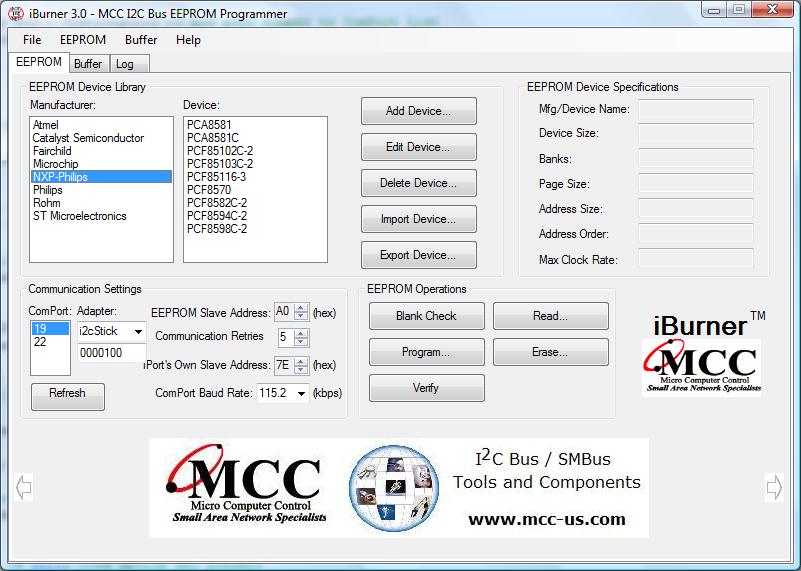

iBurner EEPROM Programming Setup

   iBurner is our I2C Bus Serial EEPROM Programmer software package that provides a quick and easy way to blank-check, program, read, and verify a wide variety of I2C Bus EEPROMs. iBurner includes a device library with many popular I2C EEPROM devices, and supports adding your own additional devices.

iBurner V3.0 adds:

  • Support for our i2cStick I2C Bus adapter.
  • iBurner Script Engine Exit Code (0=Success, -1=Fail).
  • Revised GUI and Script Creator User Interface.
  • Script Engine Attention (Beep) Operation.
  • Script Engine Automation Examples.
Supported I2C Bus EEPROM  Device Database (iBurner Device Database).

iBurner is compatible with MCC ASCII interface based I2C Bus host adapters including the iPort/AI, iPort/AFM, iPort/USB, and i2cStick. System requirements include Windows XP, Vista, or 7, and Microsoft .NET Framework V2.0 or above.
PRODUCT HIGHLIGHTS
  • Blank-check, Program, Read, and Verify almost any I2C Bus EEPROM from your PC.
  • Includes programming automation support with our Script Builder tool.
  • Supports Hex, S-Record, and Binary file formats.
  • Supports 7-bit addressing Standard (100k) and Fast (400k) Mode I2C Bus Activity.
  • Supports in-system programming on an active (multi-master) bus.
  • Supports configurable EEPROM bank, page, and word address size.
  • Supports configurable I2C Bus Clock Rate.
  • CRC-16 Checksums.
  • Built-in I2C EEPROM Device Database.
  • Add your EEPROM devices to the Device Database.
  • Import or Export Device Descriptions.
  • Automatic logging of programming operations.
  • Compatible with MCC iPort/AI, iPort/AFM, iPort/USB, and i2cStick host adapters.
 Click to view.
User's Guide (PDF)

V3.0 Revisions:

  1. Add support for i2cStick I2C Bus adapter.
  2. Add iBurner Script Engine exit code (0=Success, -1=Fail).
  3. Make slave address spin box up arrow increment slave address.
  4. Revise GUI and Script Creator user interface.
  5. Add Beep operation to Script Creator.
  6. Add Script Engine Automation Examples.
V2.2 Revisions:
  1. Enhance Script Engine validation, error handling, and logging.
  2. Abort script processing immediately on command error detection. Quit command accepted but no longer required.
  3. Correct Script Creator “Load” command offset generation.
  4. Add script “*beep” command (beep computer speaker).
  5. Add script “*settings” command (log current device settings).
  6. Optimize Script Creator script generation.
  7. Set initial Load/Save Buffer and Script folder.
V2.1 Revisions:
  1. Correct multi-byte (more than 256 bytes) EEPROM address register access.
V2.0 Revisions:
  1. Programming automation support with Script Builder tool.
  2. Automatically configures optimum communication settings.
  3. Expanded EEPROM/Buffer checksum (CRC-16) capability.
  4. More I2C EEPROM device definitions.
  5. Audit operations with built-in logging facilities.
Supported Host Adapters: Update Distribution/Licensing: System Requirements: Download and Installation Instructions:

To install this version of  iBurner on your computer, follow these instructions:

  1. Click the Download link below and save the file to your download or a temporary folder on your Windows based PC.
  2. After the download is complete, Double-click the file to install. Follow on screen instructions.
  3. After installation, click Start | Programs | iBurner | iBurner to start the program.
  4. See the User's Guide for additional instructions.
Click to Download iBurner 3.0 (1.3 MB, iBurner + User's Guide)

Do you find iBurner useful? We would like your Feedback.
