iPort/LAN I2C Host Adapter

Ethernet to I²C Bus Host Adapter
with ASCII Fast Mode Interface

MIIC-205G

iPort/LAN^TM

Tired of traveling to remote sites to monitor systems or fix problems? Then...

Get off the plane, get on the bus, with iPort/LAN^TM

iPort/LAN brings Local (LAN) or Remote (INTERNET) I²C directly to your desk. Just load our free software, plug the iPort/LAN into your network, and you will be communicating with I²C Bus devices in your office, lab, factory, or remote sites in seconds.

(Limited Availability - Coming Soon iPort/LAN 2)

With the iPort/LAN you can commuicate with I²C Bus systems at direct, local, or remote sites, monitor sensors, control devices, even reprogram EEPROMs. All from your desk. If you think that sounds fantastic, we agree.

Which I²C Adapter is right for me.

PRODUCT HIGHLIGHTS

Access Direct, Local (LAN), or Remote (INTERNET) connect I²C devices to your Desktop PC.
Supports Windows XP, Vista, 7, 8, 8.1, and 10.
Ethernet Network Interface (IEEE 802.3, 10/100Base-T, 10/100 Mbps Auto-Sensing, RJ-45).
Supports 7-bit addressing Standard (100k) and Fast (400k) Mode I²C Bus Activity.
High Performance I²C Bus Co-Processor.
Increased I²C Bus Throughput with Low Overhead.
Selectable 23KHz, 86KHz, 100KHz, and 400KHz I²C Bus Clock Rates.
Supports Bus Master and Slave, Transmit and Receive, and /INT Signaling.
Supports Multi-Master systems with Arbitration Loss Detection.
Compatible with 3-5V I²C, or 1.5-5V with our iVoLT Voltage Level Translator.
Switch controlled I²C Bus Pull-Ups.
Simple ASCII Text Ccommand Interface.
Download our free iPort Utility Pack.
Download our free iBurner EEPROM Programming Software.
Download our free Microsoft .NET Class Library.
Download our free LabVIEW VI Library.
Download our free Message Center for Linux software.
Use our free Sample Programs and Development Tools to build custom I²C applications.
Virtual Com Port based driver eliminates network complications.
Built-in ESD and Auto-Resetable Fuse Protection.
Compatible with existing MCC ASCII-text I²C Bus adapter applications.
eXtended Commands support 2-Wire, "I²C-Like", and low level signaling.
FCC and EC Certified

Download (PDF)

The iPort/LAN is our most extensible I²C Bus host adapter. Capable of accessing I²C Bus devices directly, over a Local Area Network, or over the Internet, the iPort/LAN will operate with any Windows PC. Typical applications include monitoring remote sites, update delivery, remote EEPROM programming, device control and sensor networking.

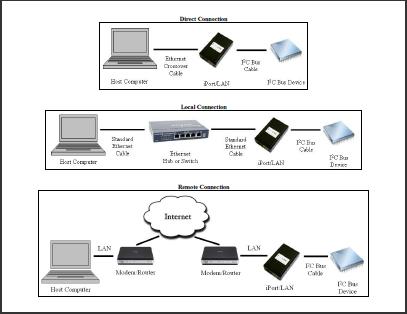

Three ways to connect (direct, local, and remote)

Over the past few years, the I²C Bus has expanded from simple control to data intensive applications. As new uses arise, remote access and bus bandwidth have become key issues in product design and testing. The iPort/LAN, our fifth generation adapter for the I²C Bus, addresses these issues by supporting several I²C bus speeds, including fast mode (400kbit/s), and local or remote network access. Implemented using a high-performance bus co-processor with optimized instruction set, the adapter also includes large message buffers (256 bytes) to reduce host computer and bus overhead. In addition to operating as a bus master or slave in a multi-master system, a built-in bi-directional /INT signal line allows the device to receive or generate "slave only" device notifications.

Thanks to it's Virtual Communications Port (VCP) driver, the iPort/LAN will work with ComPort based applications written for all our ASCII-text interface based USB and RS-232 to I²C host adapters.

Master and Slave, Transmit and Receive, iPort/LAN supports I²C message modes including Multi-Master, Arbitration Loss Detection, with messages from 1 to 32K bytes in length.

Start sending I²C messages in minutes using our Message Manager or Message Center applications included with each adapter. You can also use your computer's terminal emulation software (like Windows' Hyperterminal Program), or create your own custom I²C applications using any programming tool that can access your computer's (virtual) serial port.

iPort/LAN ASCII Text Interface Commands
Command	Description
	Note: [CR] = Carriage Return Code or Enter Key. Syntax: [Select], (Optional), xx = [00..FE], n = [1..32767]
Ctrl/R,Ctrl/R,Ctrl/R	iPort/LAN Reset This command resets the iPort/LAN to its default state.
//[CR]	Status Display Display iPort/LAN status information.
/B[0\|1\|2][CR]	Virtual Com Port Baud Rate Control Set the Virtual Com Port Baud Rate (0=19.2, 1=57.6, 2=115.2k)
/C[CR]	Close I²C Connection Disconnect from the I²C Bus.
/Dxx[CR]	Set Destination I²C Slave Address Set the destination I²C Slave Address for subsequent Master Transmit or Receive operations.
/E[0\|1][CR]	Echo/Prompt Control [0 = Disable, 1 = Enable] Enable/Disable data entry echo and prompts.
/F[0\|1][CR]	Virtual Com Port Flow Control [0 = XON/XOFF, 1 = RTS/CTS] Select serial communication handshaking protocol.
/G[0\|1][CR]	I²C General Call Control [0 = Disabled, 1 = Enabled] Enables/Disables iPort/LAN response to I²C Bus General Call (00) messages.
/H[0\|1][CR]	Hex Only Display Control [0 = Disabled, 1 = Enabled] Controls display format of received message data.
/Ixx[CR]	Set iPort/LAN’s Own I²C Slave Address Sets iPort/LAN's own I²C Slave Address. iPort/LAN will respond to I²C Bus messages sent to this address.
/K[0\|1\|2\|3][CR]	I²C Bus Clock Rate Control Set I²C Bus Clock Rate Control (0=23, 1=86, 2=100, 3=400 KHz)
/M[CR]	Command Menu Display Display iPort/LAN's Command Menu
/N[0\|1\|A\|R][CR]	iNterrupt Signal Monitor/Control Status Sets Monitor/Control/Status /INT Line. [0=Disable, 1=Enable, A=Assert, R=Release, [CR] = Status]
/O[CR]	Open I²C Connection Activates iPort/LAN as an I²C device attached to the bus.
/*Rn[CR]	Master Read Message Read the specified number of data bytes from the current Destination I²C Slave device. * = No Stop for Repeated Start
/Stext[CR]	Slave Transmit Message Write the specified data bytes to a requesting I²C Master Receiver device.
/*Ttext[CR]	Master Transmit Message Master Transmit the specified data bytes to the current Destination I²C Slave device. * = No Stop for Repeated Start
/Un[CR]	I²C Bus Time-oUt Set the I²C Bus Time-oUt in msec (0=Disable)
/V[CR]	Display iPort/LAN Firmware Version (Major XX.XX Minor)
/X[CR]	eXtended Commands Direct control of I²C Clock (SCL) and Data (SDA) lines. See User's Guide for details.
/Y[CR]	Display Tx bYte Count How many bytes did slave acknowledge.

TYPICAL APPLICATIONS

Product Development: Software/Hardware Testing and Troubleshooting.
Manufacturing: Testing and Debugging, EEPROM Programming, Quality Control.
Field Service: Field diagnosis, Repair service and Verification, Product Updates.

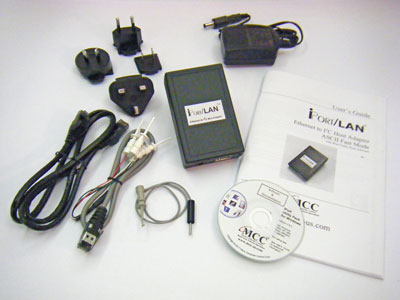

Included Parts List:

iPort/LAN I²C Bus Host Adapter (#MIIC-205)
Ethernet Interface Cable (3 Ft., Standard)
I²C Bus Clip Lead Cable (#CABCL)
/INT-Trigger Cable, 1Ft. (#AXM-12G)
Power Supply (100-240V, 50-60Hz) (#MWT-5VAG)
iPort I²C Utility Pack for Windows (iPort Utility Pack)
iPort/LAN Quick Start Guide
iPort/LAN User's Guide ( MIIC-205-UG.pdf )
FREE Technical Support

Optional Add-On Parts

I²C Bus Low Voltage Level Translator. (#IVOLT)
I²C Bus Interface Cables 4, 8 Ft. (#CAB4, #CAB8)
/INT-Trigger Cable, 1Ft. (#AXM-12G)
I²C Bus Cable Entender (#CABCE)
I²C Bus Clip Lead Cable (#CABCL)
4 Channel I²C Bus Multiplexer Board (#IP-201).

Product Environmental Specifications: See Environmental Specifications FAQ
